ALERT418® Emergency MOB Man-Overboard Receiver

Alert418® Emergency MOB Man-Overboard Receiver
    by Emerald Marine products
    Model # AR400

The NEW Alert418® Emergency MOB Man-Overboard Receiver from Emerald Marine Products.

The ALERT418® Man-Overboard Receiver is the newest addition to the ALERT Man-Overboard Alarm System.The ALERT418 Man-Overboard Receiver immediately alarms the crew and vessel of a fall-overboard situation. Upon hitting the water, the ALERT Transmitter instantly transmits to the ALERT418 Receiver on the boat, alerting the crew of a man-overboard situation. The ALERT418 Receiver supports an unlimited number of ALERT2 or ALERT418 Transmitters.

Leveraging the latest technology while maintaining proven commercial grade capabilities makes the ALERT418 Receiver an essential safety device for anyone on the water.

    * Water activated to immediately alert the vessel
    * Wired for engine kill
    * Interfaces with popular chart plotting software
    * Ability to sound external alarm systems
    * Displays valuable Transmitter unit information
        * Unit ID number – to immediately know who fell overboard
        * Signal strength indicator – find the MOB quicker based on single strength of the MOB’s transmitter
        * Low battery – easily know when a transmitter needs new batteries to ensure the crew is always prepared for a man-overboard situation
        * Proven, reliable, durable

Alert418 Man-Overboard Alarm System Video

Description

The ALERT418® Man-Overboard Receiver immediately alarms the crew and vessel of a man-overboard situation in seconds. When the difference between life and death is three minutes, the best chance of a successful rescue is by the crew onboard.

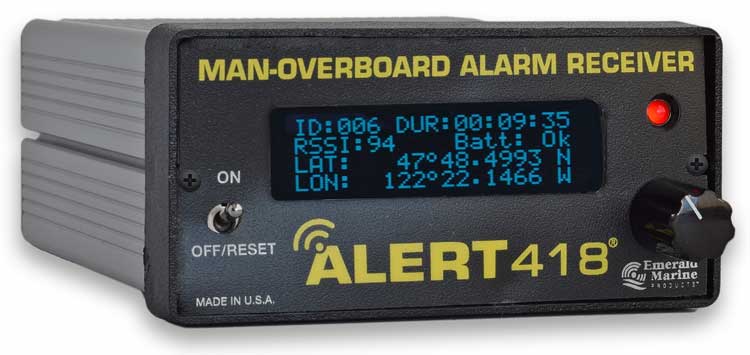

The ALERT418 Receiver is installed aboard the vessel or on land for shoreside awareness. When the ALERT418 Receiver picks up an ALERT2 or ALERT418 Transmitter signal, an internal siren sounds in the Receiver and a the digital display is illuminated with important information such as the location of the vessel at time of incident and ID number of ALERT418 Transmitter that is transmitting (ALERT2 Transmitter does not transmit unit ID). In addition to this valuable information is a Relevant Signal Strength Indicator (RSSI) to provide a numeric reading of the strength of the ALERT Transmitter. The ALERT418 Receiver also has the ability to be wired so it can shutdown the engine, mark a position on a compatible Chart Plotter, sound external alarm systems, and other options.

Automatically Activated
Upon immersion in water, the ALERT Transmitter instantly sends a radio signal to the onboard ALERT418 Receiver to alarm the crew and vessel of a fall-overboard.

Alerts in Seconds
When every second counts, the ALERT Man-Overboard Alarm System instantaneously alarms the vessel, providing the crew the critical extra seconds needed for a successful man overboard rescue. Unlike AIS, the response of the ALERT418 Receiver is immediate. There is no lag time connecting with satellites.

Wired for Engine Kill
For single handers and solo fisherman, the ALERT Man-Overboard Alarm System can be wired to shut off the engine in the event of a fall-overboard, enabling the man overboard to get back to the boat.

Plot Overboard Waypoint
The ALERT418 Man-Overboard Receiver can easily connect to a compatible plotter to instantly mark the location of the fall overboard. Sending a NMEA 0183 compliant sentence, compatible chart plotting software will display the location of the incident.

The ALERT418 Receiver can be directly wired to the boat’s 12-volt wiring system or connected via optional 110-volt power supply.

Displays Valuable Transmitter Unit Information

• Unit ID number – to immediately know who fell overboard
• Signal strength indicator – find the MOB quicker based on single strength of the MOB’s transmitter
• Low battery indicator – easily know when a transmitter needs new batteries to ensure the crew is always prepared for a man-overboard situation

An ALERT418 Receiver supports an unlimited number of ALERT2 or ALERT418 Transmitters.

Transmitting on the proprietary 418 MHz frequency, the Alert2 and Alert418 Man-Overboard Transmitters must be used with a ALERT2 or Alert 418 Man-Overboard Receiver, or an Alert2 Radio Direction Finder to complete the Alert Man-Overboard Alarm System.

Specifications

Dimensions: 6 x 3.75 x 1.875 inches
Weight: 13 ounces
Power supply: Twelve volt DC or 110 volt power supply converter
Controls: On / Off reset switch, dial to silence alarm and dim display, dry contacts in back for external alarm capabilities
Attachments: 418Mhz flexible whip antenna, GPS antenna, terminal block for wiring of additional products, serial port to connect NMEA 0183 supported products
Illumination: Digital display, red alarm LED
Mounting: Bracket or flush mount
Receives from: ALERT2 Transmitter, ALERT418 Transmitter
FCC approval: Part 15 (no license required)
Industry Canada approval: RSS 210 (no license required)
Frequency: 418 MHz
Range: 1,000 feet from line of sight of antenna
Antenna: External 15″ flexible whip antenna tuned to 418Mhz and GPS antenna with 25’ coaxial cable
Internal alarm: 95dB, front panel mounted
Remote alarm / Engine shutdown: relay contacts: normally open and normally closed, 1A maximum (greater than 1A requires relay switch)
GPS: Serial connector to connect to NMEA 0183 compliant Chart Plotter
Operating temperature: -4 degree F to 130 degree F (-20 degree C to 54 degree C)
Country of manufacture: United States of America
Part number (unit with antennas and coaxial cable): AR400

ALERT2 Customer Looking to Upgrade?
The ALERT418 Receiver has the same dimensions as the ALERT2 Receiver, therefore, you can easily swap out the two units. Order part number AR401 if you only want the ALERT418 Receiver, mounting hardware and GPS antenna. You will then be able to use your existing ALERT antenna and coaxial cable to operate the device. If you purchased your ALERT2 Receiver within the past year you may be eligible for a product rebate towards the ALERT418 Receiver. Please contact Us

If you have any questions concerning this product, please don't hesitate to contact us.
